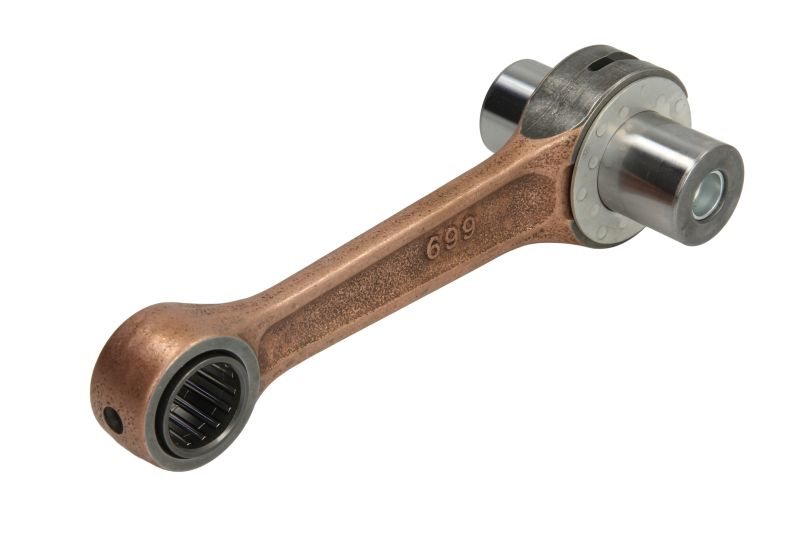

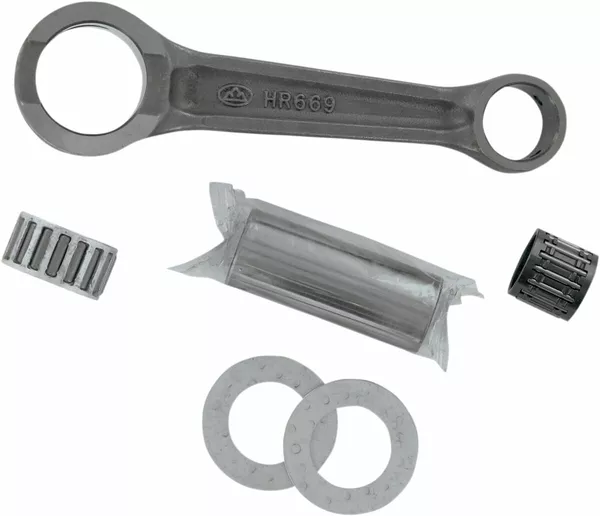

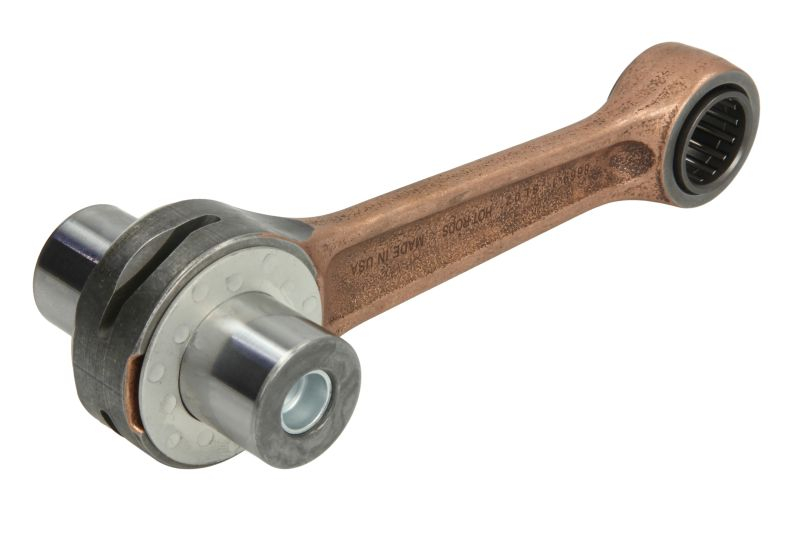

Biela KTM EXC, MXC, SX, SXS, XC, XC-W 250/300 2003-

Biela KTM EXC, MXC, SX, SXS, XC, XC-W 250/300 2003-2017


2004 - 2011 KTM 250 EXC
2003 - 2015 KTM 250 SX
2003 - 2007 KTM 250 SXS
2004 - 2015 KTM 250 XC
2004 - 2014 KTM 250 XC-W
2004 - 2011 KTM 300 EXC
2004 - 2011 KTM 300 MXC
2004 - 2014 KTM 300 XC
2004 - 2014 KTM 300 XC-W

Technical Specifications:
Big End Bearing (mm): 24x31x16.6
Big End Bore (mm): 31.00
Big End Width (mm): 16.90
Center To Center (mm): 124.90
Pin Diameter (mm): 24.00
Pin Length (mm): 59.80
Small End Bearing (mm): 18x22x20
Small End Bore (mm): 22.00
Small End Width (mm): 16.90
Washer Thickness (mm): 1
